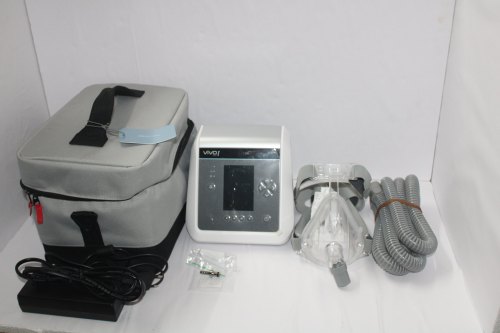

VIVO 1 Non-Invasive Ventilation

Overview

• Vivo 1 is intended for spontaneously breathing patients.
• The Vivo 1 is a new generation ventilator designed for personalized and comfortable non-invasive respiratory support for non-dependent patients with chronic breathing insufficiency.
• The intuitive interface ensures ease of use. A comprehensive set of modes and extensive monitoring capabilities allow for great flexibility, making the ventilator a perfect choice for a variety of patients.
• Vivo 1 is intended to provide non-invasive ventilation for patients weighing over 10 kg who require long-term support or mechanical ventilation for respiratory impairment, with or without obstructive sleep apnea.

Description

• A BIPAP is a Non invasive therapy it a pressure controlled in a spontaneous breathing. • It is used to help you breathe easier when you have condition that make breathing difficult . • Obstructive sleep apnea is a serious condition in which your breathing stop and starts repeatedly while you are asleep. • Chronic obstructive pulmonary disease (copd) • Asthma • Obesity hypoventilation syndrome. • Heart condition such as congestive heart failure or coronary artery disease • A neurological or neuromuscular disorder that affect your ability to breathe. • Poor breathing after a medical procedure such as surgery. • The machine works by pushing the pressurized air into your lungs. • It reduces burden on respiratory muscles and lungs to inhale and exhale • The machine motor blows air through the tube certain amount of required pressure. • The pressurized air enters your body through the mask or plugs. • It eliminates need for using a ventilator that makes uses of a tube that goes down into your throat without used for tracheotomy. • A tracheotomy is a procedure to create a hole in your neck to let you breathe through the trachea.

Benefits & Specifications

• Lightweight and Compact
• Integrated Humidifier with heated wire circuit
• Wide range of Modes
• Adult and paediatric (>10kg)
• Intuitive Interface
• Extensive therapy data
• Suitable for use in hospital and home
• Closer monitoring with Breas accessory box
• EveryWare – Secure cloud-based remote monitoring*
• PC Software – Desktop-based with Live Viewer

Specifications

Ventilation Modes

S, ST, PSV, CPAP

Adult/Peadiatric

>10kg

IPAP

4 – 25 cmH2O

EPAP

2 – 20 cm H2O

Breath Rate/Back-up Rate

0-40 bpm

Inspiratory Time

0.3 – 5 s

Rise Time

1 – 9

Inspiratory Trigger

1 – 9

Expiratory Trigger

1 – 9

Minimum Inspiratory Time

Off, 0.3 – 3 s

Maximum Inspiratory Time

Off 0.3 – 3 s

Ramp (Up/Down)

Off 10-60mins

Target Volume

100 – 1500 ml

Auto-EPAP

On/Off, Pressure Limit: Max EPAP +2 cmH2O –25 cmH2O, PS 2-23c, Min/Max EPAP: 2 – 20 cmH2O, EPAP Step: 0.5 – 2 cmH2O, Relax Time: 2-12mins/Off

Humidifier Level

1-5

Heated Circuit

Off, 1-5

Patient Circuit

15mm, 22mm

O2 Bleed in (Device)

0-30L/min

Displayed data

Ppeak, EPAP, Leakage, MV, Vte % in TgV, Total Rate I:E, Spont Rate, % spont, Inspiratory time, Rise time, SpO2, Pulse, Rate

Mains supply

100 to 240 V AC

External DC

24 V

Alarms

High Pressure, Low Pressure, High Breath Rate, Low Breath Rate High MV, Low MV, Rebreathing Apnea, Disconnection, High SpO2, Low SpO2, High Pulse Rate, Low Pulse Rate, Power Failure

Dimensions

W x H x D 166 x 185 x 200 mm

Weight

1.6kg

Noise level (at 10 cmH2O constant pressure)

Less than 28 dB(A)

Connectivity and Software

Built-in connectivity USB

Compatible Software

PC Software and is prepared for EveryWare Remote Monitoring

Plug-and-Play accessories

SpO2, Nurse Call, Remote Alarm, Accessories Box

Humidification

Integrable water chamber

Circuits

Cleanable & Disposable leakage circuits with/without heated wires

Compliance Data (on Screen)

Min Daily Usage Off, 1-24hrs, Total Usage Hours, Total Days, Days with Usage, Average Usage, Days Compliant, AHI
