BX4000 Plus

Overview

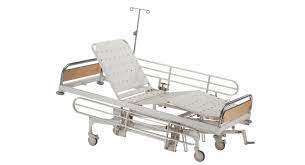

The BX 4000 fowler bed has the four section metallic perforated top. One bed with polymer Moulded handle and one bed with metal handle . It stainless steel laminated head and foot boards on side railings. DVT prevention platform

Description

• Hospital cot is a bed designed for hospitalized patient or other in need form of healthcare. It has special features both for comfort and well being patient and convenience of healthcare workers. • It has more modern features such as wheels, elevation, side rails, tilting, bed exit alarm, and CRP function and specialist bed. • Easily cleanable compact laminate lying surface. • High strength and composite material. • Easy for caregiver • Sleep comfortably • It covers are manufactured from modern recyclable material and are vapor permeable which reduce the risk of skin maceration. • There are three different types of hospital cot: Manual, Semi electric and Fully Electric . o MANUAL: These cot use hand cranks to adjust the bed height and raise and lower the head and foot. o SEMI ELECTRIC: It raises and lowers the head and foot part of the bed. o FULLY ELECTRIC: The patient can control the height and position of the bed with pendant or remote. It can move into move positions such as the trendelenburg (tilt) position. • It improve mobility • The 3 function are hospital cot are • Whole bed body lift up and down with balance • Back side lifts up and down • Leg bends and extends , leg lifts up and down • Bed rails for proper position and stability • It ability to prevent intended motion during transfer • It has ability to maintain to prevent intended and surface pressure • It using CNC hydraulic bending technology • Safe anti collision design • It ensures the hospital cot is lubricated and maintain at proper intervals. • Built in storage and a scale • It designed and constructed to provide safety comfort and mobility for a broad range of patient varying condition and treatment plans and it has adjustable settings.

Benefits & Specifications

• Raised backrest and knee rest
• DVT end platform/ calf elevation
• Four section metallic perforated platform
• Easily detachable head and foot boards
• Pre-treated and epoxy powder coated MS parts
• Provision for IV Pole
• Safety buffers at four corners
• Removable handle
• Supplied in SKD condition

Specifications

Bed Frame Dimensions

2080mm x 920mm,82”x36”(LXW)

Mattress Platform

1970mm x820mm,78”x32”(LXW)

Buffer to Buffer (when castors provided)

2130mm x 970mm,84”x38”(LXW)

Backrest Angle

0”-65”

Knee rest angle

0”-50”

Safe Working Load

135kgs

Patient Weight Bearing Capacityˆ

100 kgs

Standard features

Raised backrest • Two section metallic perforated top • Pre-treated and epoxy powder coated MS parts • Provision for IV pole • Removable handle • Easily removable head and foot boards • Supplied in SKD condition

Railings and Legs

• Collapsible type epoxy powder coated railing (pair) • Collapsible type epoxy powder coated MS safety side railing with SS tubes (pair) • Swing down type epoxy powder coated MS safety side railing (pair) (factory ­tted) • Collapsible type epoxy powder coated vertical safety side railing (pair) • Collapsible type full-length type SS railing with epoxy powder coated frame (pair) • Single set big size polymer railing (factory ­tted) • Split type polymer moulded safety side railing (pair) (factory ­tted) • H' type legs 910 mm (36”) width & 600 mm (24”) height with rubber shoes • H' type legs 910 mm (36”) width & 450 mm (18”) height with rubber shoes • H' type legs 910 mm (36”) width & 600 mm (24”) height with 125 mm high grade synthetic castors, two with brake and two without brake • H' type legs 910 mm (36”) width & 600 mm (24”) height with 125 mm high grade synthetic castors, two with brake and two without brake • H' type legs 910 mm (36”) width & 450 mm (18”) height with 125 mm high grade synthetic castors, two with brake and two without brake • H' type Legs 910 mm (36”) width & 450 mm (18”) height with 125 mm high grade synthetic castors, two with brake and two without brake

Head and Foot Boards

Polymer moulded head and foot boards • SS laminated head and foot boards • Conventional head and foot boards
