NM2

Overview

The iVolve N2 channels airflow noninvasively to a patient from a
positive airway pressure device such as a continuous positive
airway pressure (CPAP) or Bi-level system.
The iVolve N2 is:
• To be used by adult patients (> 30 kg) for whom positive
airway pressure has been prescribed.
• Intended for single-patient re-use in the home
environment and multi-patient re-use in the hospital /
institutional environment

Description

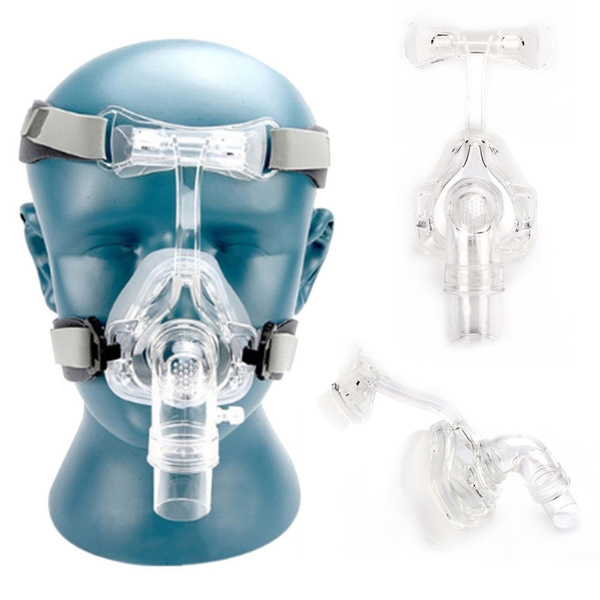

• Nasal mask is a triangular in shape and sit on the face around the nose. • It held in place by head gear stretchy straps that go around nose. • The nasal mask covers the patient nose from the bridge to the upper limb area. • It deliver an indirect airflow to the airway to the nasal mask and its works for patient who need higher pressure settings. • It is most commonly used to provide relief to people with respiratory disorders. • It blows air into nose through a nose mask helping to keep the airway open while you sleep. • It prefer a more natural airflow.

Benefits & Specifications

• NM2 nasal mask gives you ultra-comfort. Its soft silicon cushion provides you with lightweight and perfect fit.
• Quiet venting feature enables you and your bed partner to enjoy an undisturbed sleep.
• Elastic forehead pad gives you a wider range of comfort to adjust your dynamic facial contour.
• Stay simple: With its 3 parts compact design, you can reassemble it instantly. Perfect balance of ultra lightweight and unique comfort delivers more compliance.
• Gentle experience: Intellectual vent design disperses air flow gently offering you and your bed partner ultra Provide continuous positive airway pressure (CPAP) or bi-level positive airway pressure (Bi- PAP) treatment for adult patients Acute Respiratory Failure, Sleep Apnea, Respiratory failure caused by varies reason, and Chronic Obstructive Pulmonary Disease Nocturnal hypoxemia, Patients sensitive to Invasive Pressure Ventilation Treatment

Specifications

PRESSURE FLOW CURVE

PRESSURE(Cm H20)            FLOW(L/MIN)

4                                               20

11                                             36

17                                              46

24                                               56

30                                                63.5

DEAD SPACE INFORMATION

Dead space is the empty volume of the mask up to the swivel. The dead space of the mask varies according to cushion sizes but is less than 135 mL.

THERAPY PRESSURE

4 to 30 hpa

RESISTANCE

Drop in Pressure measured (average for 3 sizes) at 50 L/min: 0.2 hPa

at 100 L/min:0.5 hPa

SOUND

DECLARED DUAL-NUMBER NOISE EMISSION VALUES in accordance with ISO 4871. The A-weighted sound power level of the mask is 32 dBA, with uncertainty 3 dBA. The A-weighted sound pressure level of the mask at a distance of 1m is 24 dBA, with uncertainty 3 dBA.

ENVIRONMENTAL CONDITIONS

Operating temperature: +5°C to +40°C Operating humidity: 0% ～ 93% relative humidity non-condensing Storage and transport: -20°C to +55°C Storage and transport humidity: 0% ～ 93% relative humidity non-condensing

NOTE

·         Provide continuous positive airway pressure (CPAP) or bi-level positive airway pressure (Bi- PAP) treatment for adult patients

·         Acute Respiratory Failure

·         Sleep Apnea

·         Respiratory failure caused by varies reason, and Chronic Obstructive Pulmonary Disease Nocturnal hypoxemia

·         Patients sensitive to Invasive Pressure Ventilation Treatment
